GBE Series Safety Light Curtain

● Used for the protection of objects in industrial automation systems and machinery.
● Ultra-compact design, with a width and thickness of only 25mm×28mm, suitable for installation on narrow machinery.
● Available in two types: front light-emitting and side light-emitting.
● Utilizes professional optical synchronization technology, eliminating the need for wired connections between the emitter and receiver, making wiring simple and convenient.
● Features a professional optical lens construction and advanced optical system design, providing excellent focusing characteristics and stronger resistance to light interference.
● When installed in parallel, the frequency of the projector can be set to prevent interference.
● No blind spot design on the top and bottom, effectively reducing installation space.
● NPN or PNP output can be directly connected to PLC, PC, or external relays.

Download：

CORON GBE Series Safety light curtain.pdf

Product Description

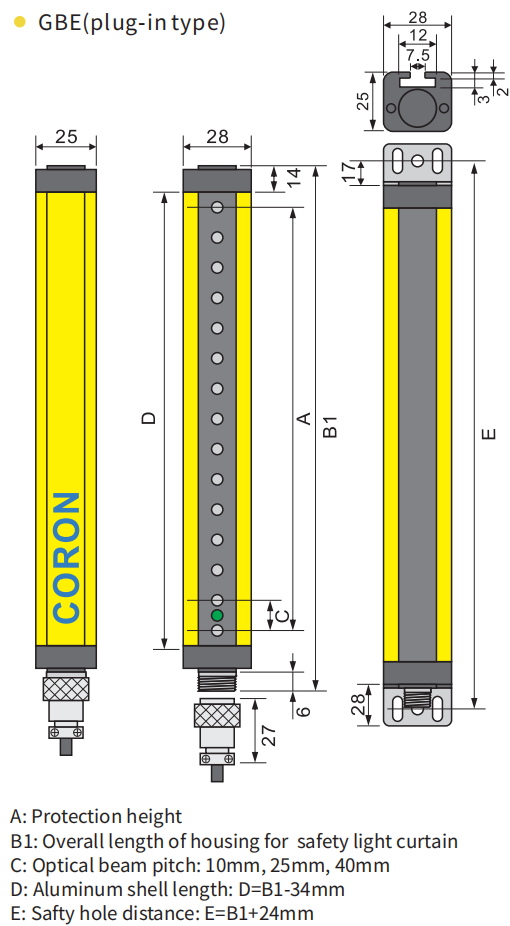

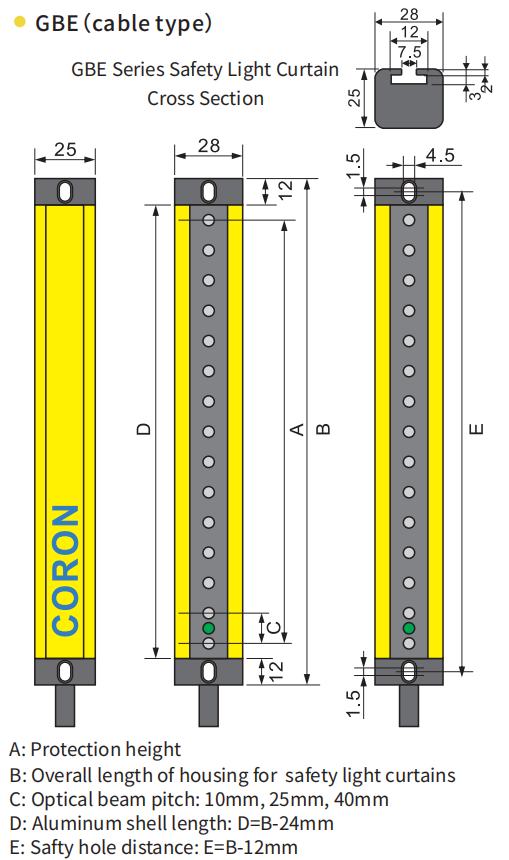

Overall dimension

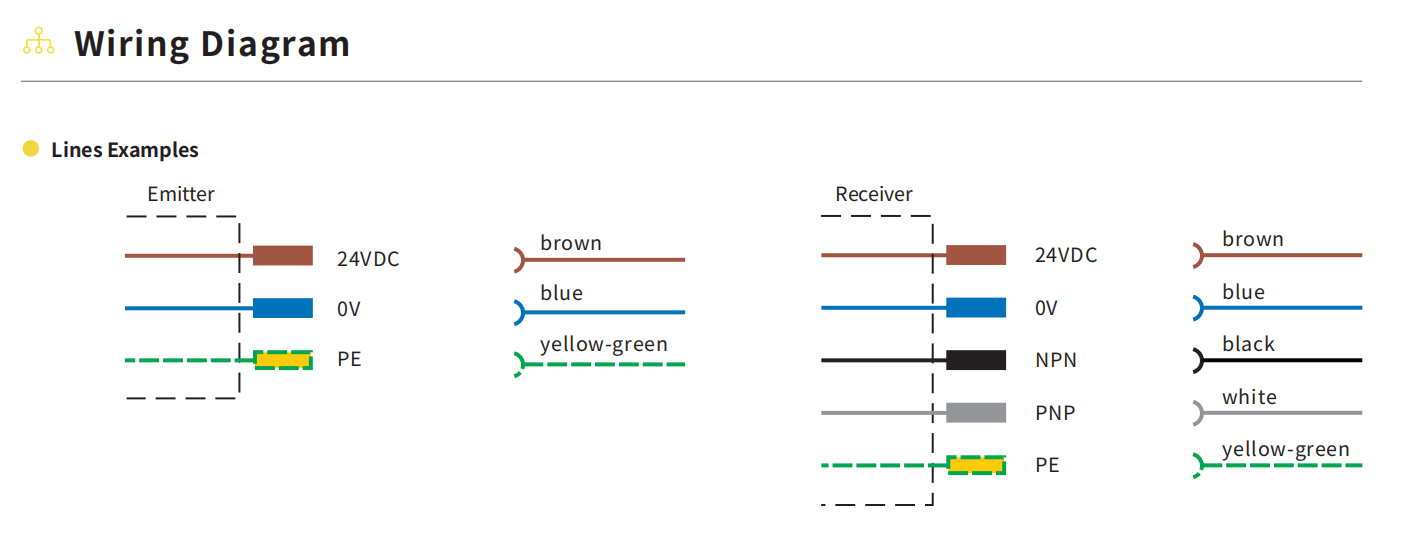

Wiring Diagram

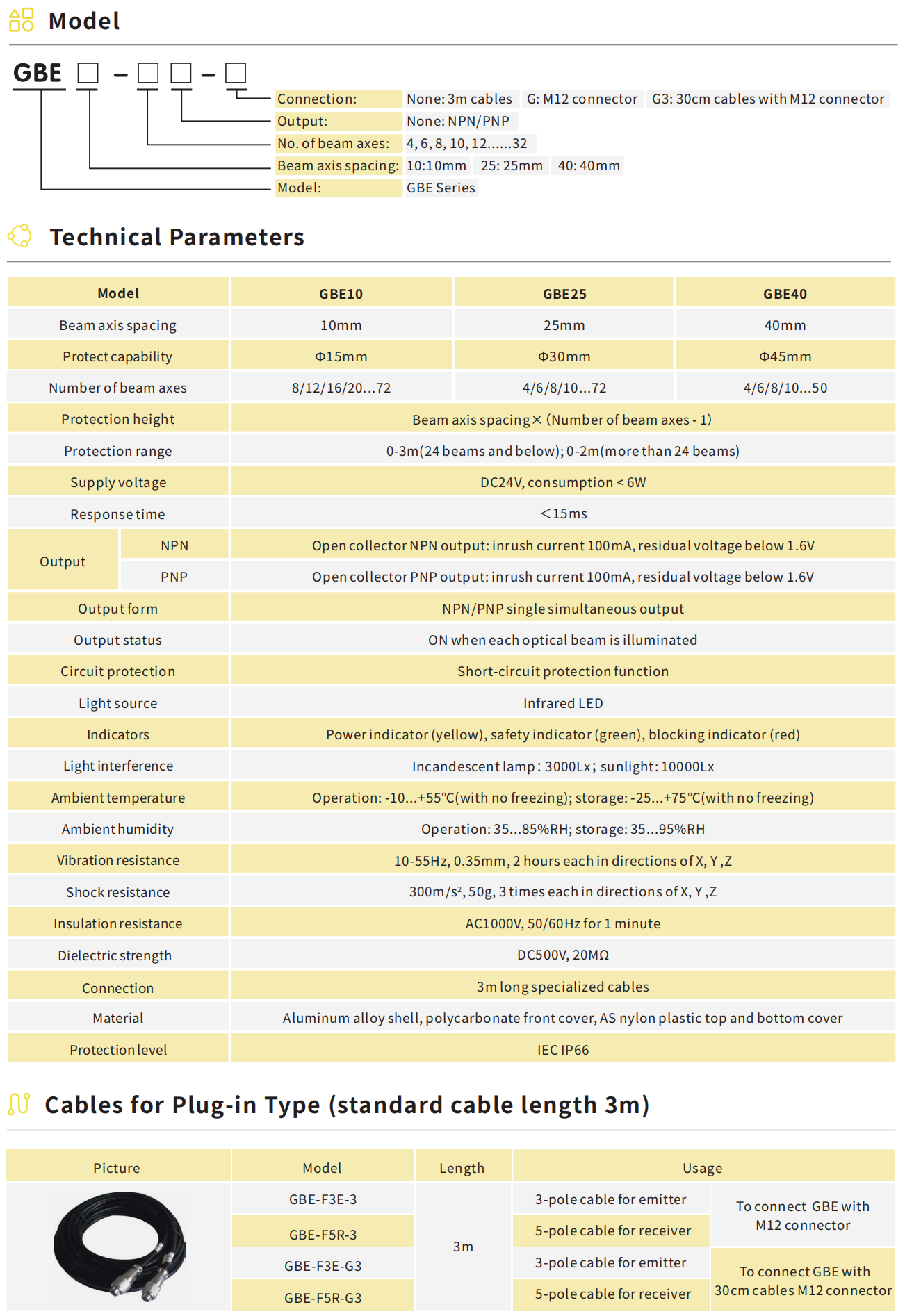

Technical parameter

Circuit diagram

Dimensional structure

3D model

Apply

Customs data

Attachment

Certificate

●GBE10 Safety Light Curtain				●GBE40 Safety Light Curtain				●GBE25 Safety Light Curtain
Model	A	B	B1	Model	A	B	B1	Model	A	B	B1
GBE10□-8	70	150	160	GBE40□-4	120	185	195	GBE25□-4	75	125	135
GBE10□-12	110	190	200	GBE40□-6	200	265	275	GBE25□-6	125	175	185
GBE10□-16	150	230	240	GBE40□-8	280	345	355	GBE25□-8	175	225	235
GBE10□-20	190	270	280	GBE40□-10	360	425	435	GBE25□-10	225	275	285
GBE10□-24	230	310	320	GBE40□-12	440	505	515	GBE25□-12	275	325	335
GBE10□-28	270	350	360	GBE40□-14	520	585	595	GBE25□-14	325	375	385
GBE10□-32	310	390	400	GBE40□-16	600	665	675	GBE25□-16	375	425	435
GBE10□-36	350	430	440	GBE40□-18	680	745	755	GBE25□-18	425	475	485
GBE10□-40	390	470	480	GBE40□-20	760	825	835	GBE25□-20	475	525	535
GBE10□-44	430	510	520	GBE40□-22	840	905	915	GBE25□-22	525	575	585
GBE10□-48	470	550	560	GBE40□-24	920	985	995	GBE25□-24	575	625	635
GBE10□-52	510	590	600	GBE40□-26	1000	1065	1075	GBE25□-26	625	675	685
GBE10□-56	550	630	640	GBE40□-28	1080	1145	1155	GBE25□-28	675	725	735
GBE10□-60	590	670	680	GBE40□-30	1160	1225	1235	GBE25□-30	725	775	785
GBE10□-64	630	710	720	GBE40□-32	1240	1305	1315	GBE25□-32	775	825	835
GBE10□-68	670	750	760	GBE40□-34	1320	1385	1395	GBE25□-34	825	875	885
GBE10□-72	710	790	800	GBE40□-36	1400	1465	1475	GBE25□-36	875	925	935
				GBE40□-38	1480	1545	1555	GBE25□-38	925	975	985
				GBE40□-40	1560	1625	1635	GBE25□-40	975	1025	1035
				GBE40□-42	1640	1705	1715	GBE25□-42	1025	1075	1085
				GBE40□-44	1720	1785	1795	GBE25□-44	1075	1125	1135
				GBE40□-46	1800	1865	1875	GBE25□-46	1125	1175	1185
				GBE40□-48	1880	1945	1955	GBE25□-48	1175	1225	1235
				GBE40□-50	1960	2025	2035	GBE25□-50	1225	1275	1285
								GBE25□-52	1275	1325	1335
								GBE25□-54	1325	1375	1385
								GBE25□-56	1375	1425	1435
								GBE25□-58	1425	1475	1485
								GBE25□-60	1475	1525	1535
								GBE25□-62	1525	1575	1585
								GBE25□-64	1575	1625	1635
								GBE25□-66	1625	1675	1685
								GBE25□-68	1675	1725	1735
								GBE25□-70	1725	1775	1785
								GBE25□-72	1775	1825	1835
