QRN30 Ultrasonic Sensor

●The product has passed the explosion-proof certification from the National Quality Inspection and Testing Center for Low-Voltage Explosion-Proof Electrical Equipment.
●Explosion-proof certificate: Ex ia II CT6 Ga, certificate number: CLEx24.8996X.
●The measurement process is not affected by the color, transparency, glossiness of objects, or ambient light.
●M30 specification, detection distance 2m.
●Equipped with temperature compensation function, unaffected by ambient temperature.
●Strong anti-interference ability, enhanced resistance to electromagnetic and radio frequency interference.
●Features NPN/PNP switching outputs, RS485 communication output, and 4-20mA/0-10VDC analog outputs.
●The detection distance and range can be arbitrarily set via the remote setting wire.
●Completely unaffected by dust, dirt, and fog.

Download：

Product Description

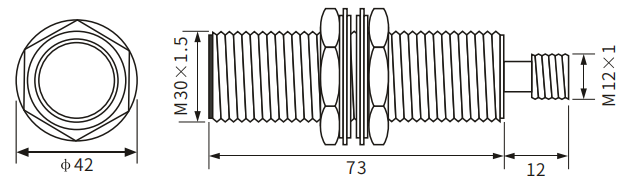

Overall dimension

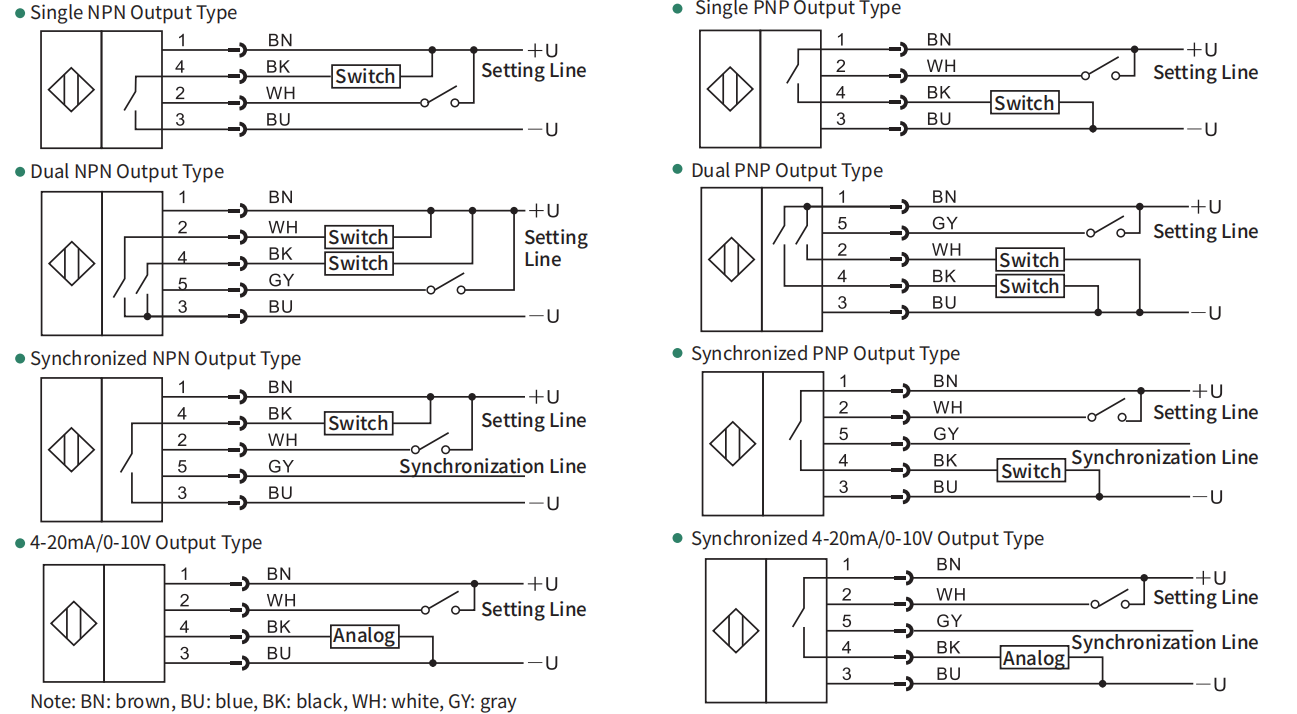

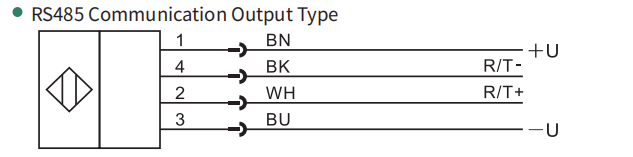

Wiring Diagram

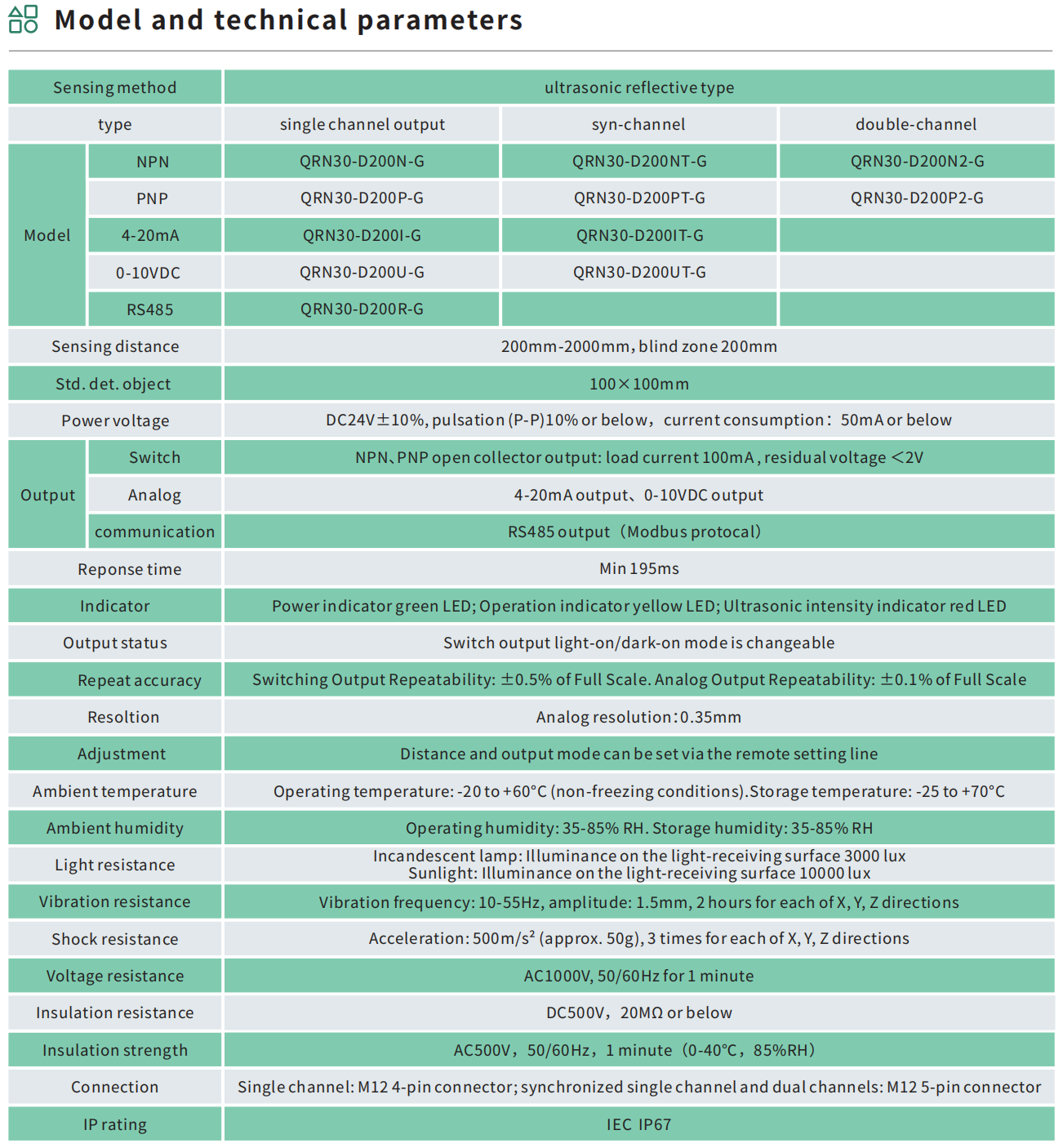

Technical parameter

Circuit diagram

Dimensional structure

3D model

Apply

Customs data

Attachment

Certificate

Technical parameter

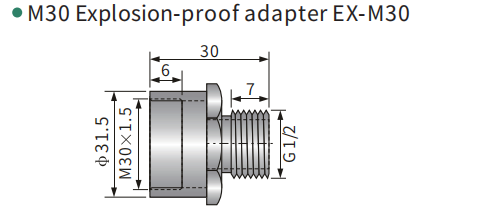

External dimensions
Wiring diagram
3D model
Apply
Customs data
Attachment

- Commodity name: QRN30 Ultrasonic Sensor
●The product has passed the explosion-proof certification from the National Quality Inspection and Testing Center for Low-Voltage Explosion-Proof Electrical Equipment. ●Explosion-proof certificate: Ex ia II CT6 Ga, certificate number: CLEx24.8996X. ●The measurement process is not affected by the color, transparency, glossiness of objects, or ambient light. ●M30 specification, detection distance 2m. ●Equipped with temperature compensation function, unaffected by ambient temperature. ●Strong anti-interference ability, enhanced resistance to electromagnetic and radio frequency interference. ●Features NPN/PNP switching outputs, RS485 communication output, and 4-20mA/0-10VDC analog outputs. ●The detection distance and range can be arbitrarily set via the remote setting wire. ●Completely unaffected by dust, dirt, and fog.
