GGB Solid State relays

With a novel structure and sunken terminal posts, it can protect the exposed wiring parts. Widely used in solid-state relays with 10-120A output current. Bidirectional triac output, zero-voltage turn-on, and zero-current turn-off. It has large working current, surge impact resistance, and high reliability. The input circuit and output circuit are optoelectrically isolated. The withstand voltage is 2500V. The LED indicator can indicate its working status. With a built-in RC snubber circuit, the absorption effect is better. Miniaturized and universal dimensions allow for unified installation. Equipped with a safety protective cover.

Download：

GGB solid state relay.pdf

Product Description

Overall dimension

Wiring Diagram

Technical parameter

Circuit diagram

Dimensional structure

3D model

Apply

Customs data

Attachment

Certificate

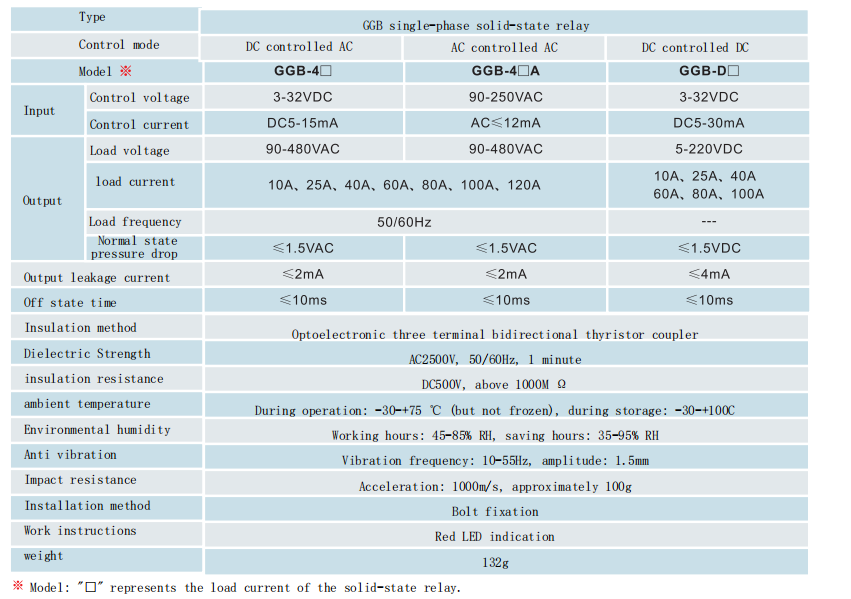

Technical parameter
External dimensions
Wiring diagram
3D model
Apply
Customs data
Attachment

- Commodity name: GGB Solid State relays
With a novel structure and sunken terminal posts, it can protect the exposed wiring parts. Widely used in solid-state relays with 10-120A output current. Bidirectional triac output, zero-voltage turn-on, and zero-current turn-off. It has large working current, surge impact resistance, and high reliability. The input circuit and output circuit are optoelectrically isolated. The withstand voltage is 2500V. The LED indicator can indicate its working status. With a built-in RC snubber circuit, the absorption effect is better. Miniaturized and universal dimensions allow for unified installation. Equipped with a safety protective cover.
Key words:
- Novel structure
- Equipped with a safety cover
