GTA solid-state voltage regulator type
● Widely used in 10-120A output current solid state regulator. ●External potentiometer or 4-20mA, 1-5VDC weak current voltage to achieve the control of strong power. ●Have high working current, surge shock resistance and high reliability. ●Optical isolation between input and output circuits. Withstanding voltage 2500V. ●LED indicator can indicate its working status. ●Built-in resistive-capacitive absorption circuit for more absorption effect. ●Miniaturisation and universal size are common and can be installed uniformly. ●Equipped with a safety cover.
Download：
Contact Us
Product Description

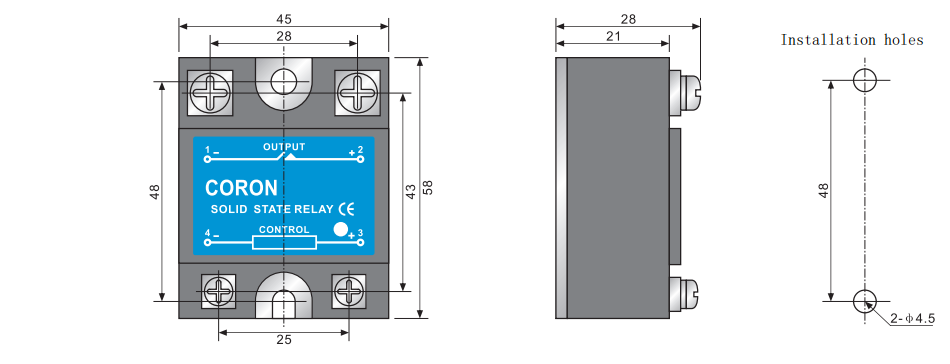

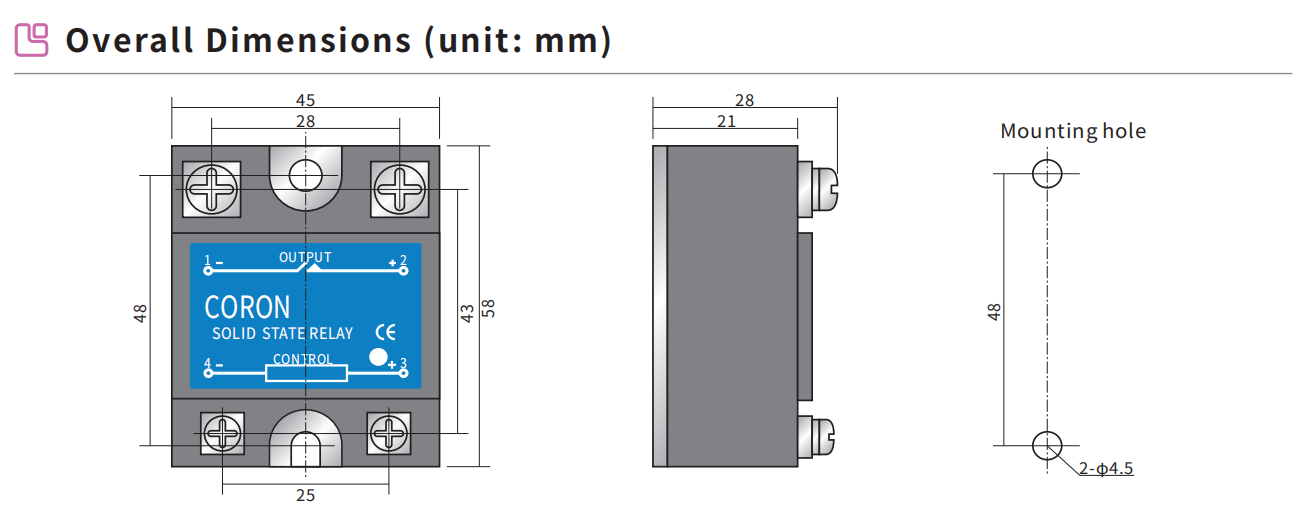

Overall dimension

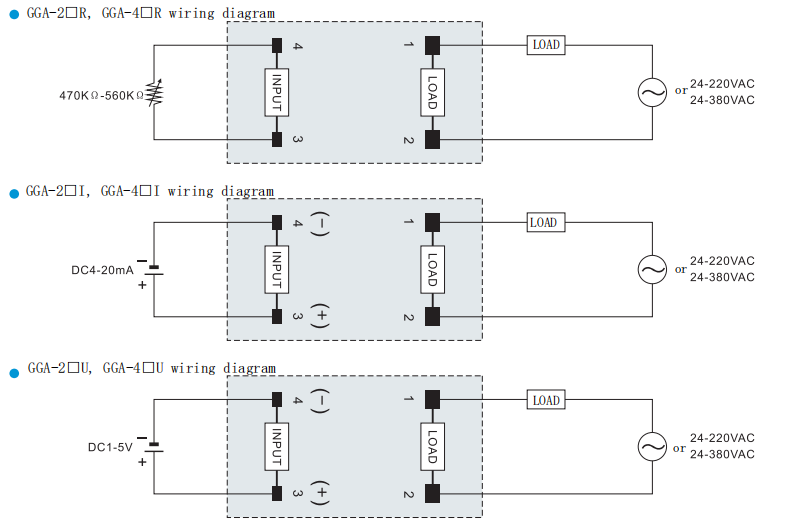

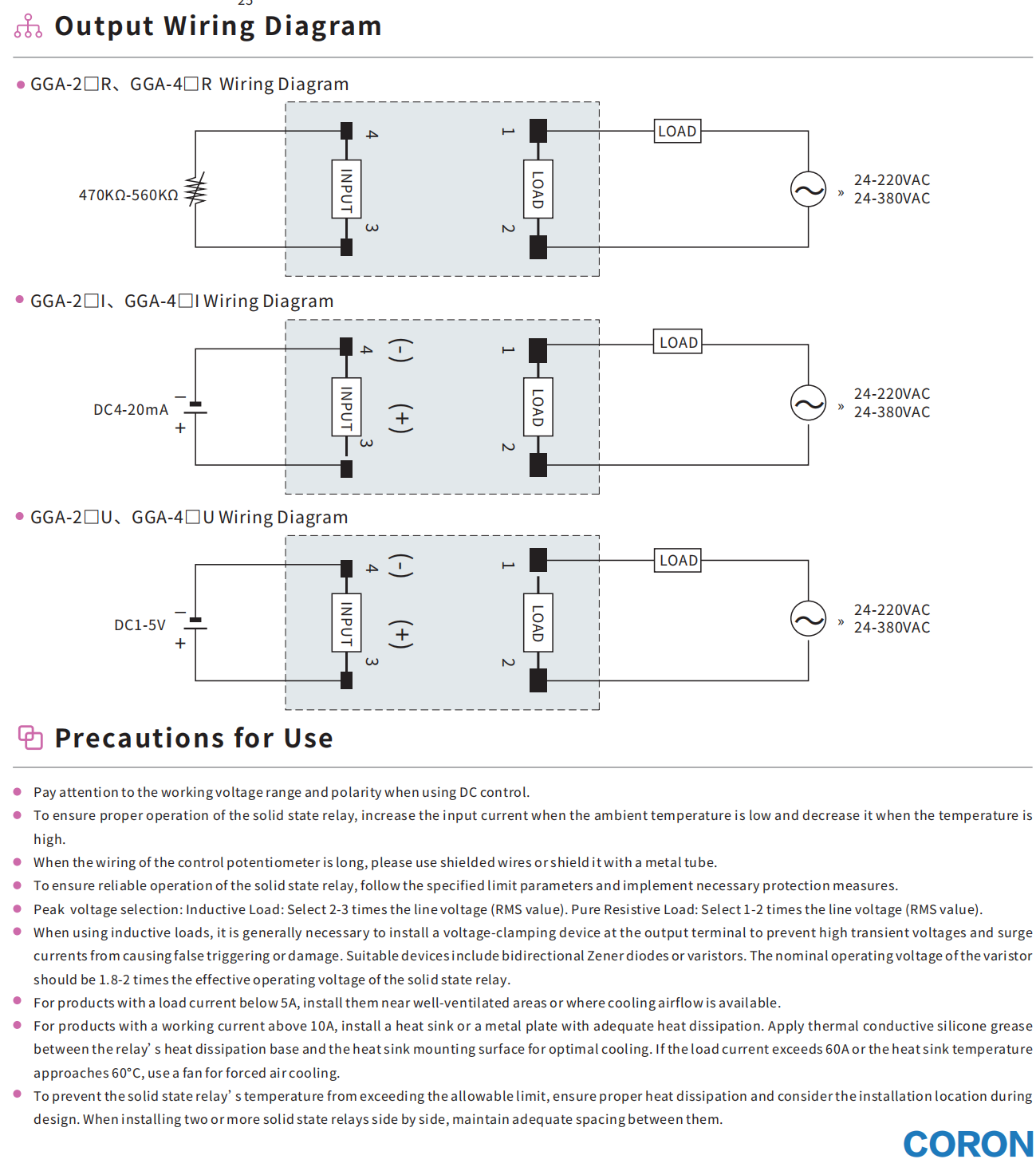

Wiring Diagram

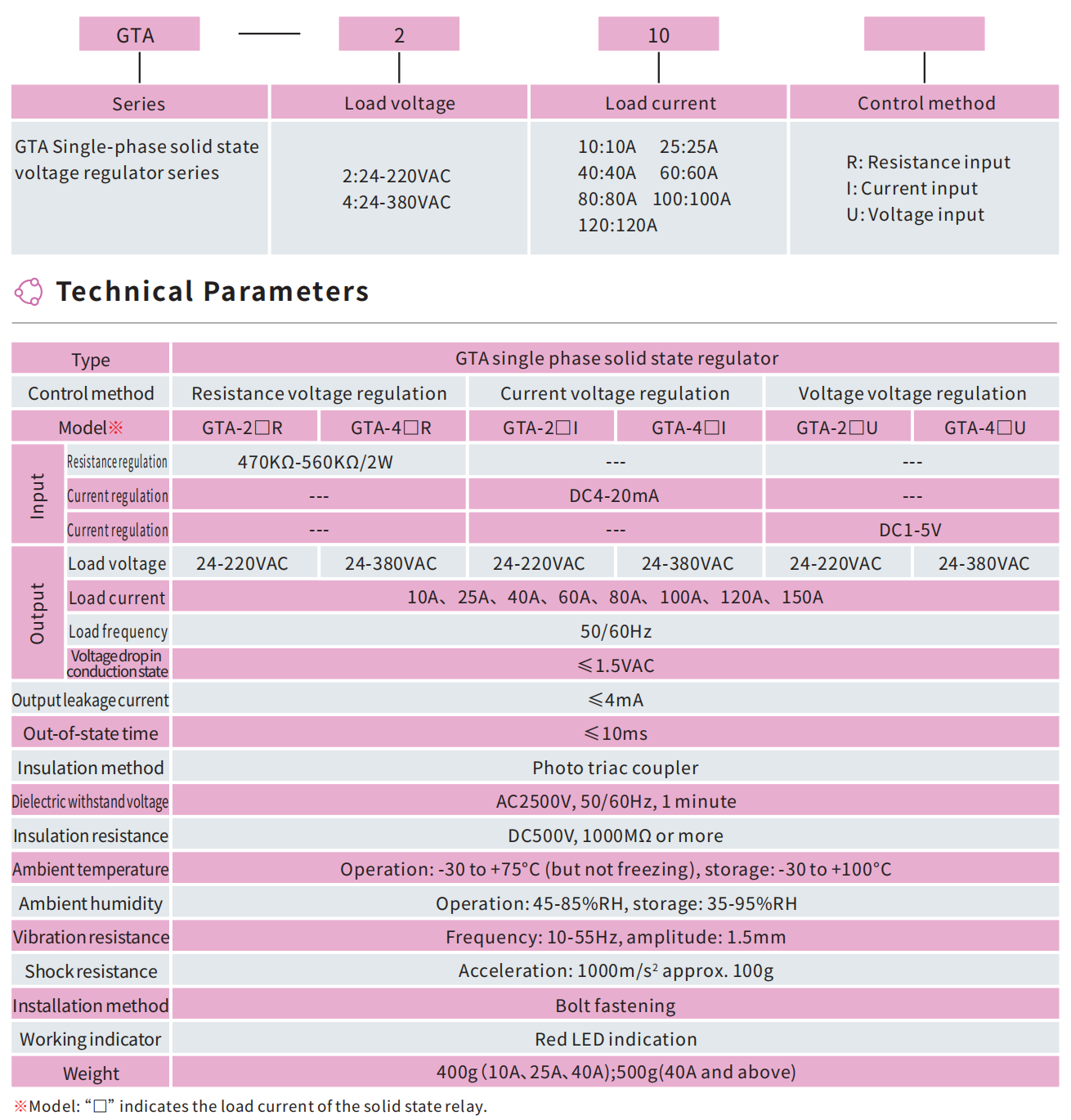

Technical parameter
Circuit diagram
Dimensional structure
3D model
Apply
Customs data
Attachment
Certificate
| Type | GTA single phase solid state regulator | ||||||
| Controlmethod | Resistance voltage regulation | Current voltage regulation | Voltage voltage regulation | ||||
| Model※ | GTA-2□R | GTA-4□R | GTA-2□I | GTA-4□I | GTA-2□U | GTA-4□U | |
| Input | Resistance regulation | 470KQ-560KΩ/2W | --- | ||||
| Current regulation | --- | DC4-20mA | --- | ||||
| Currentregulation | --- | DC1-5V | |||||
| Output | Load voltage | 24-220VAC | 24-380VAC | 24-220VAC | 24-380VAC | 24-220VAC | 24-380VAC |
| Load current | 10A、25A、40A、60A、80A、100A、120A、150A | ||||||
| Load frequency | 50/60Hz | ||||||
| Voltagedropin conductionstate |
≤1.5VAC | ||||||
| Outputleakagecurrent | ≤4mA | ||||||
| Out-of-state time | ≤10ms | ||||||
| Insulation method | Photo triac coupler | ||||||
| Dielectric withstand voltage | AC2500V,50/60Hz,1 minute | ||||||
| Insulation resistance | DC500V,1000MQ or more | ||||||
| Ambient temperature | Operation:-30 to+75℃(but not freezing),storage:-30 to+100℃ | ||||||
| Ambienthumidity | Operation:45-85%RH,storage:35-95%RH | ||||||
| Vibrationresistance | Frequency:10-55Hz,amplitude:1.5mm | ||||||
| Shockresistance | Acceleration:1000m/s²approx.100g | ||||||
| Installation method | Bolt fastening | ||||||
| Workingindicator | Red LED indication | ||||||
| Weight | 400g(10A、25A、40A);500g(40Aand above) | ||||||
| ※Model:“□”indicates the load current ofthe solid state relay. | |||||||
- Technical parameter
- External dimensions
- Wiring diagram
- 3D model
- Apply
- Customs data
- Attachment
-
- Commodity name: GTA solid-state voltage regulator type
● Widely used in 10-120A output current solid state regulator. ●External potentiometer or 4-20mA, 1-5VDC weak current voltage to achieve the control of strong power. ●Have high working current, surge shock resistance and high reliability. ●Optical isolation between input and output circuits. Withstanding voltage 2500V. ●LED indicator can indicate its working status. ●Built-in resistive-capacitive absorption circuit for more absorption effect. ●Miniaturisation and universal size are common and can be installed uniformly. ●Equipped with a safety cover.
Type GTA single phase solid state regulator Controlmethod Resistance voltage regulation Current voltage regulation Voltage voltage regulation Model※ GTA-2□R GTA-4□R GTA-2□I GTA-4□I GTA-2□U GTA-4□U Input Resistance regulation 470KQ-560KΩ/2W --- Current regulation --- DC4-20mA --- Currentregulation --- DC1-5V Output Load voltage 24-220VAC 24-380VAC 24-220VAC 24-380VAC 24-220VAC 24-380VAC Load current 10A、25A、40A、60A、80A、100A、120A、150A Load frequency 50/60Hz Voltagedropin
conductionstate≤1.5VAC Outputleakagecurrent ≤4mA Out-of-state time ≤10ms Insulation method Photo triac coupler Dielectric withstand voltage AC2500V,50/60Hz,1 minute Insulation resistance DC500V,1000MQ or more Ambient temperature Operation:-30 to+75℃(but not freezing),storage:-30 to+100℃ Ambienthumidity Operation:45-85%RH,storage:35-95%RH Vibrationresistance Frequency:10-55Hz,amplitude:1.5mm Shockresistance Acceleration:1000m/s²approx.100g Installation method Bolt fastening Workingindicator Red LED indication Weight 400g(10A、25A、40A);500g(40Aand above) ※Model:“□”indicates the load current ofthe solid state relay. Key words:- Miniaturisation and universal size
- 1-5VDC
-
-
