GGC three-phase forward and reverse type Solid State relays

●Applied to the control of motor forward and reverse rotation. ● Bi-directional thyristor output, zero-voltage switch-on, zerocurrent switch-off. ●Hardware and software interlocks have been set inside the module. ●High working current, surge resistance and high reliability. ●Optical isolation between input and output circuits. Withstanding voltage 2500V. ●Red and green LEDs indicate positive and negative operating status. ●Built-in resistive-capacitive absorption circuit for better absorption effect. ●With safety protection cover.

Download：

Product Description

Overall dimension

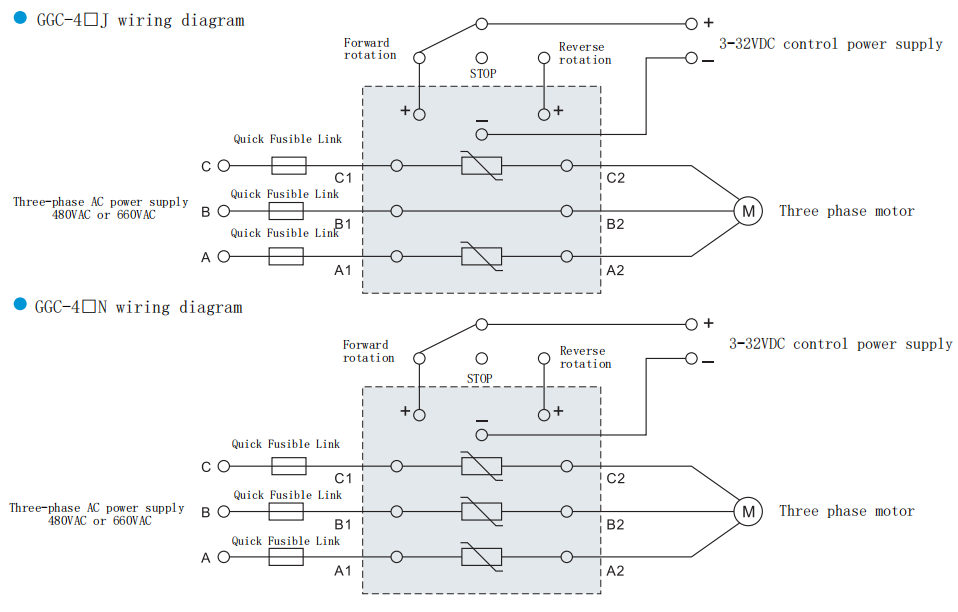

Wiring Diagram

Technical parameter

Circuit diagram

Dimensional structure

3D model

Apply

Customs data

Attachment

Certificate

Type		GGC Three Phase Forward and Reverse Solid State Relay
Control method		DC to AC
Control type		3-wire,2-controltype	3-wire,2-control type	3-wire,3-controltype	3-wire,3-controltype
Model※		GGC-4□J	GGC-6□J	GGC-4□N	GGC-6□N
Input	Control voltage	3-32VDC
	Control current	DC10-50mA
Output	Load voltage	480VAC	660VAC	480VAC	660VAC
	Load current	10A、25A、40A、60A、80A、100A、120A
	Load frequency	50/60Hz
	Voltagedropin conduction state	≤2VAC
Output leakage current		≤10mA
Forward andreverse switchingtime		≤50ms
Insulation method		Photo triac coupler
Dielectric withstand voltage		AC2500V,50/60Hz,1 minute
Insulation resistance		DC500V,1000MΩ ormore
Ambient temperature		Operation:-30 to+75℃(but not freezing),storage:-30 to+100℃
Ambient humidity		Operation:45-85%RH,storage:35-95%RH
Vibration resistance		Frequency:10-55Hz,amplitude:1.5mm
Shock resistance		Acceleration:1000m/s²approx.100g
Installation method		Bolt fastening
Workingindicator		Red LED,green LED to indicate forward and reverse rotation
Weight		400g(10A、25A、40A);500g(40A and above)
※Model:“□”indicates the load current of the solid state relay.
