GGC three-phase type Solid State relays
● Widely used in 10-150A output current solid state relays. ● Bi-directional thyristor output, zero voltage turn on, zero current turn off. ●Have high working current, surge shock resistance and high reliability. ● Optical isolation between input and output circuits. Withstanding voltage 2500V. ●LED indicator can indicate its working status. ●Built-in resistive-capacitive absorption circuit for more absorption effect. Miniaturisation and universal size for uniform installation. ●Equipped with safety protection.
Download：
Contact Us
Product Description
Overall dimension
Wiring Diagram
Technical parameter
Circuit diagram
Dimensional structure
3D model
Apply
Customs data
Attachment
Certificate
| Type | GGC Three Phase Solid State Relay | ||
| Control method | DC to AC | AC to AC | |
| Model※ | GGC-4□ | GGC-4□A | |
| Input | Control voltage | 3-32VDC | 90-280VAC |
| Control current | DC20-50mA | AC≤12mA | |
| Output | Load voltage | 480VAC | 480VAC |
| Load current | 10A、25A、40A、60A、80A、100A、120A、150A | ||
| Load frequency | 50/60Hz | ||
| Voltagedropinconductionstate | ≤1.8VAC | ||
| Outputleakage current | ≤10mA | ||
| Out-of-state time | ≤10ms | ||
| Insulation method | Photo triac coupler | ||
| Dielectric withstand voltage | AC2500V,50/60Hz,1minute | ||
| Insulation resistance | DC500V,1000MΩ ormore | ||
| Ambienttemperature | Operation:-30 to+75℃(but not freezing),storage:-30 to+100℃ | ||
| Ambient humidity | Operation:45-85%RH,storage:35-95%RH | ||
| Vibration resistance | Frequency:10-55Hz,amplitude:1.5mm | ||
| Shock resistance | Acceleration:1000m/s²approx.100g | ||
| Installation method | Bolt fastening | ||
| Workingindicator | Red LED indication | ||
| Weight | 400g(10A、25A、40A);500g(40A and above) | ||
| ※Model:“□”indicates the load current of the solid state relay. | |||
- Technical parameter

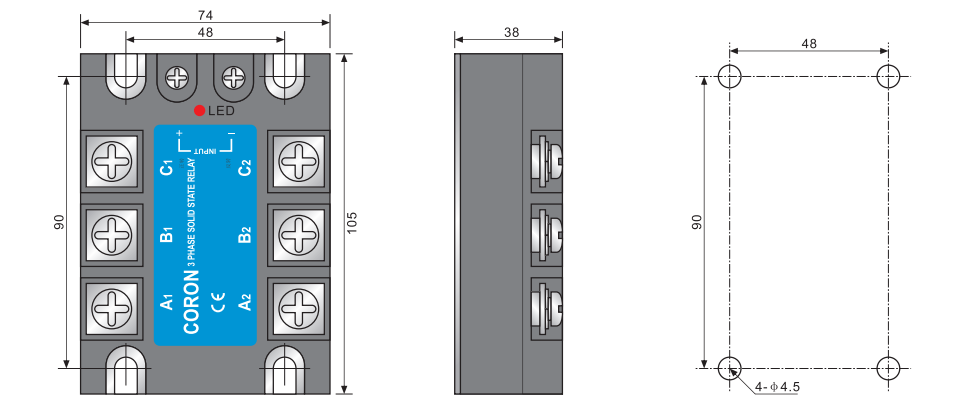

- External dimensions

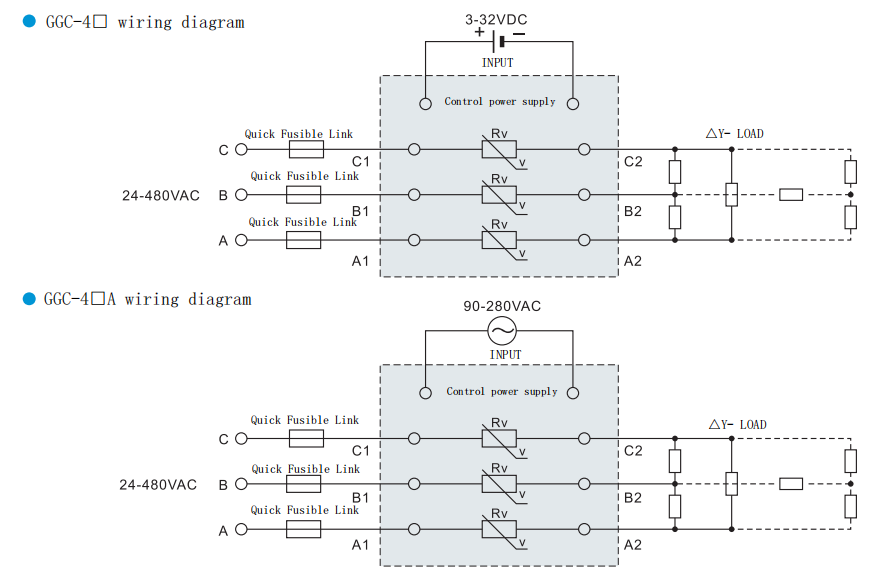

- Wiring diagram
- 3D model
- Apply
- Customs data
- Attachment
-
- Commodity name: GGC three-phase type Solid State relays
● Widely used in 10-150A output current solid state relays. ● Bi-directional thyristor output, zero voltage turn on, zero current turn off. ●Have high working current, surge shock resistance and high reliability. ● Optical isolation between input and output circuits. Withstanding voltage 2500V. ●LED indicator can indicate its working status. ●Built-in resistive-capacitive absorption circuit for more absorption effect. Miniaturisation and universal size for uniform installation. ●Equipped with safety protection.
Type GGC Three Phase Solid State Relay Control method DC to AC AC to AC Model※ GGC-4□ GGC-4□A Input Control voltage 3-32VDC 90-280VAC Control current DC20-50mA AC≤12mA Output Load voltage 480VAC 480VAC Load current 10A、25A、40A、60A、80A、100A、120A、150A Load frequency 50/60Hz Voltagedropinconductionstate ≤1.8VAC Outputleakage current ≤10mA Out-of-state time ≤10ms Insulation method Photo triac coupler Dielectric withstand voltage AC2500V,50/60Hz,1minute Insulation resistance DC500V,1000MΩ ormore Ambienttemperature Operation:-30 to+75℃(but not freezing),storage:-30 to+100℃ Ambient humidity Operation:45-85%RH,storage:35-95%RH Vibration resistance Frequency:10-55Hz,amplitude:1.5mm Shock resistance Acceleration:1000m/s²approx.100g Installation method Bolt fastening Workingindicator Red LED indication Weight 400g(10A、25A、40A);500g(40A and above) ※Model:“□”indicates the load current of the solid state relay. Key words:- 10-150A output current
