GGE Solid State relays

●Widely used in 60-400A output current industrial grade solid state relays. ● Bi-directional thyristor output, zero voltage turn on, zero current turn off. ●Vacuum + hydrogen-filled protection welding technology. ●High working current, surge impact resistance, high reliability. ●Photoelectric isolation between input and output circuits. Withstand voltage 2500V. LED indicator can indicate its working status. ●Built-in resistive-capacitive absorption circuit for more absorption effect. ●Compact and universal size common, can be installed uniformly. ●Equipped with a safety cover.

Download：

Product Description

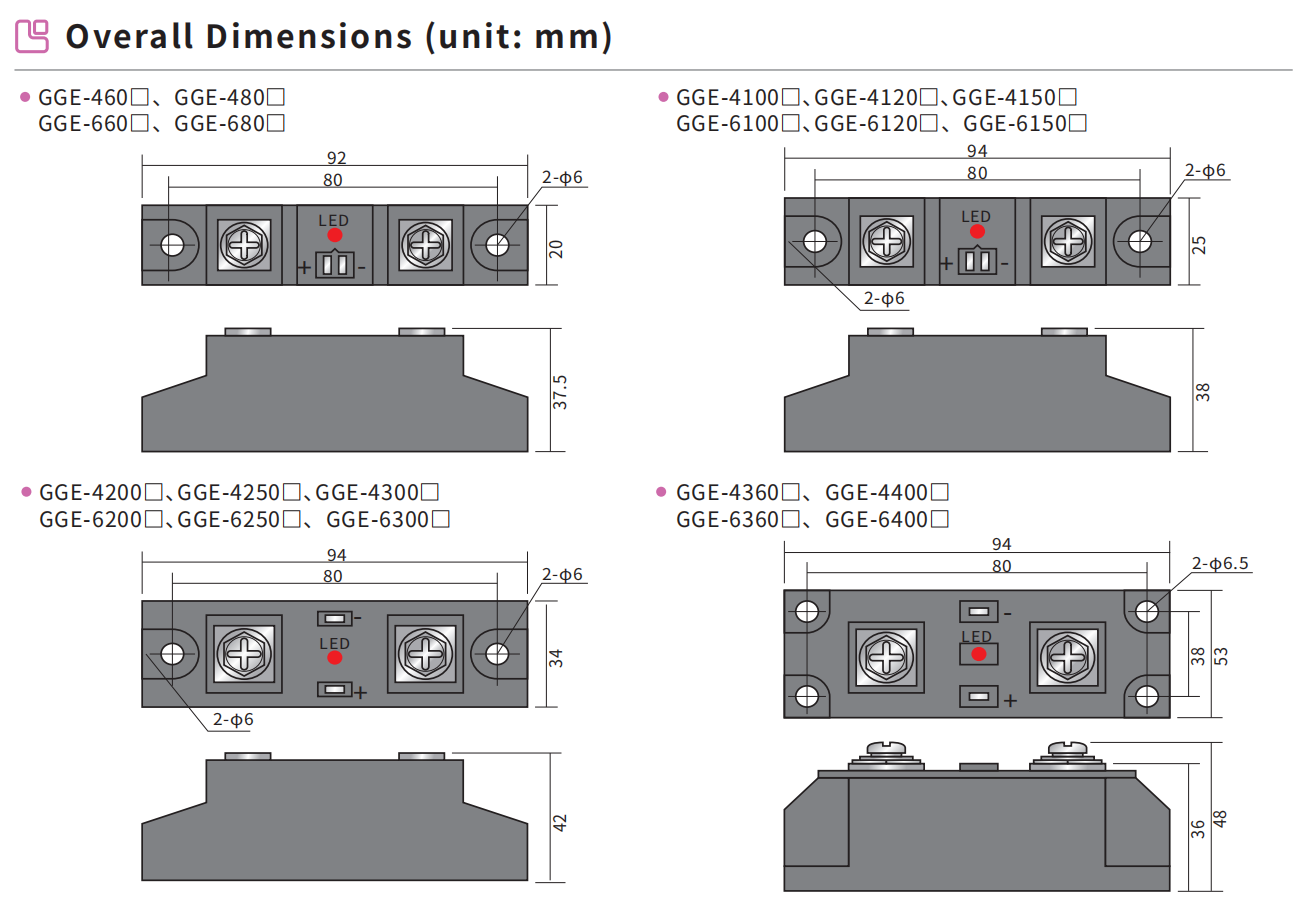

Overall dimension

Wiring Diagram

Technical parameter

Circuit diagram

Dimensional structure

3D model

Apply

Customs data

Attachment

Certificate

Type		GGE Single Phase Industrial Grade Solid State Relay
Control method		DC-AC		AC-AC
Model※		GGE-4□	GGE-6□	GGE-4□A	GGE-6□A
Input	Control voltage	3-32VDC		90-250VAC
	Controlcurrent	DC6-15mA		AC≤12mA
Output	Load voltage	480VAC	660VAC	480VAC	660VAC
	Load current	60:60A 80:80A 100:100A 120:120A 150:150A 200:200A 250:250A 300:300A 360:360A 400:400A
	Load frequency	50/60Hz
	Voltagedrop in conduction state	≤1.8VAC
Output leakage current		≤4mA
Out-of-state time		≤10ms
Insulation method		Photo triac coupler
Dielectric withstand voltage		AC2500V,50/60Hz,1 minute
Insulation resistance		DC500V,1000MQ ormore
Ambient temperature		Operation:-30 to+75℃(but not freezing),storage:-30 to+100℃
Ambienthumidity		Operation:45-85%RH,storage:35-95%RH
Vibration resistance		Frequency:10-55Hz,amplitude:1.5mm
Shock resistance		Acceleration:1000m/s²approx.100g
Installation method		Bolt fastening
Workingindicator		Red LED indication
Weight		132g(60A-150A);240g(200A-300A);500g(360A、400A)
※Model:“□”indicates the load current of the solid state relay.

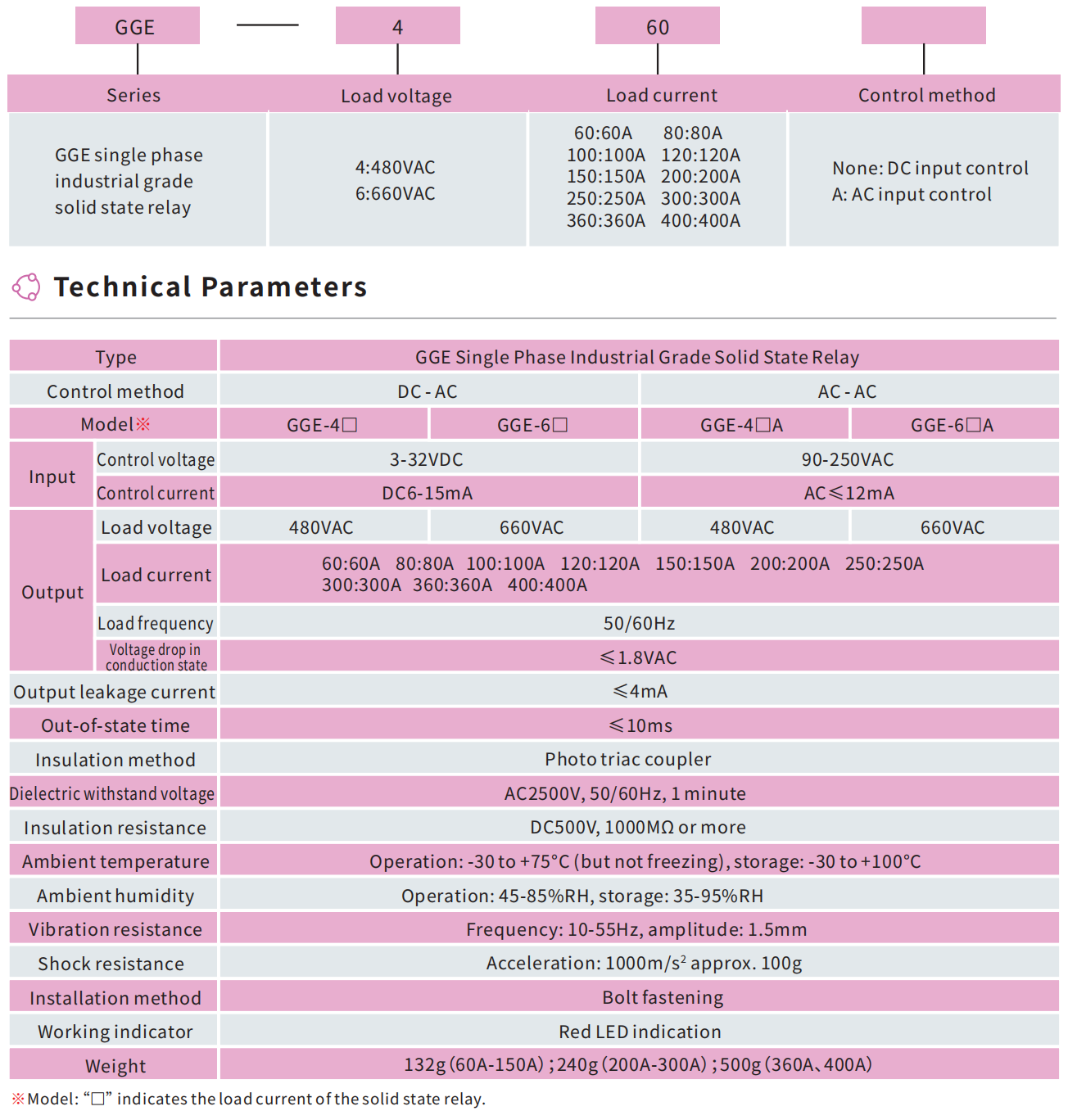

Technical parameter

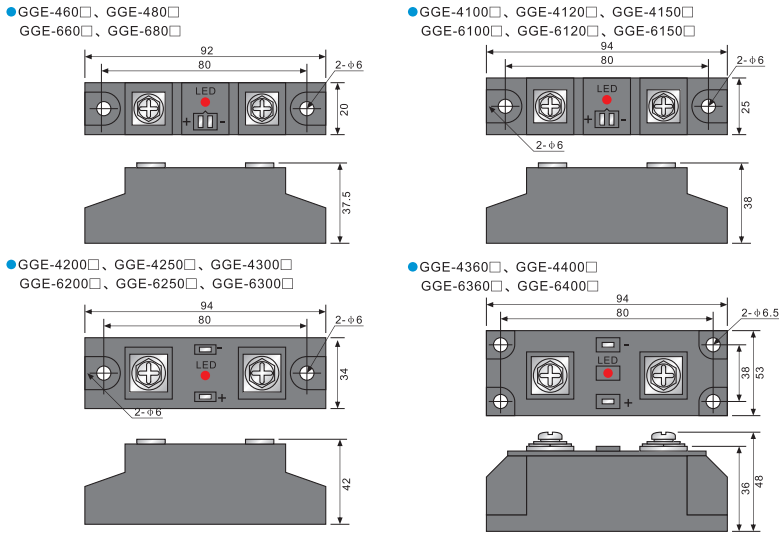

External dimensions

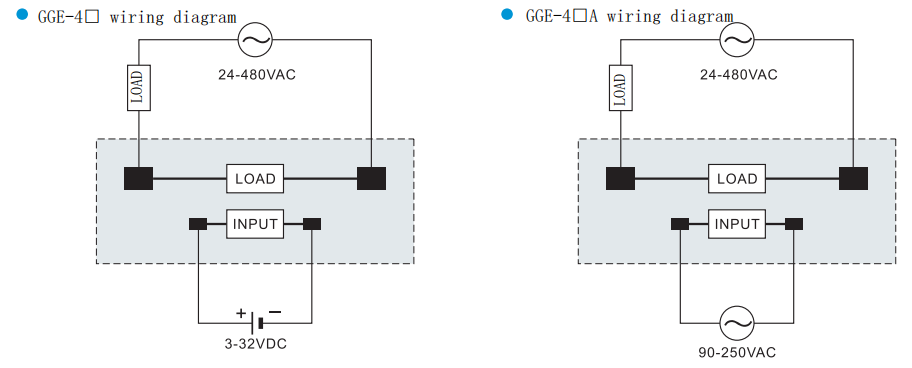

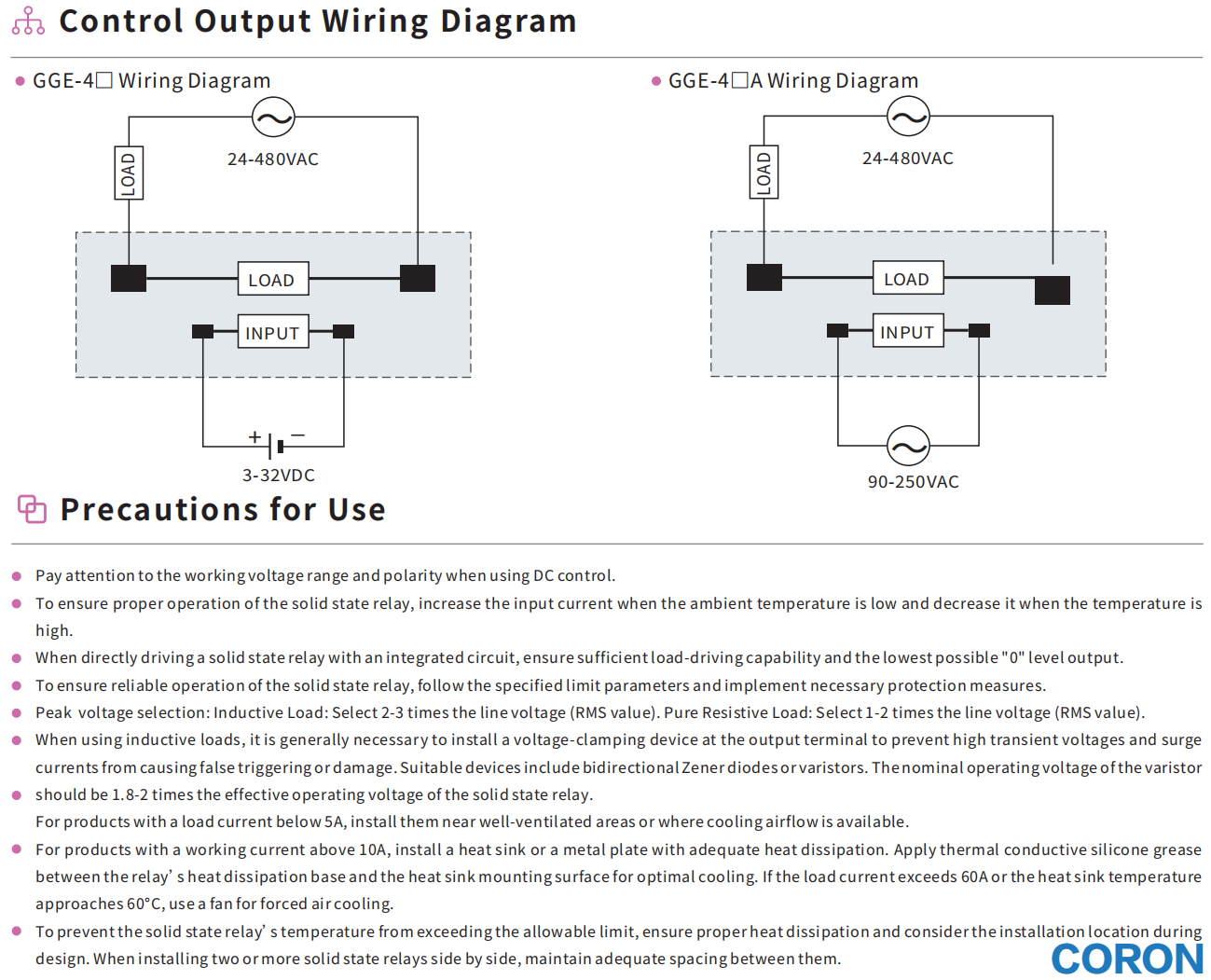

Wiring diagram
3D model
Apply
Customs data
Attachment

Commodity name: GGE Solid State relays

Type		GGE Single Phase Industrial Grade Solid State Relay
Control method		DC-AC		AC-AC
Model※		GGE-4□	GGE-6□	GGE-4□A	GGE-6□A
Input	Control voltage	3-32VDC		90-250VAC
	Controlcurrent	DC6-15mA		AC≤12mA
Output	Load voltage	480VAC	660VAC	480VAC	660VAC
	Load current	60:60A 80:80A 100:100A 120:120A 150:150A 200:200A 250:250A 300:300A 360:360A 400:400A
	Load frequency	50/60Hz
	Voltagedrop in conduction state	≤1.8VAC
Output leakage current		≤4mA
Out-of-state time		≤10ms
Insulation method		Photo triac coupler
Dielectric withstand voltage		AC2500V,50/60Hz,1 minute
Insulation resistance		DC500V,1000MQ ormore
Ambient temperature		Operation:-30 to+75℃(but not freezing),storage:-30 to+100℃
Ambienthumidity		Operation:45-85%RH,storage:35-95%RH
Vibration resistance		Frequency:10-55Hz,amplitude:1.5mm
Shock resistance		Acceleration:1000m/s²approx.100g
Installation method		Bolt fastening
Workingindicator		Red LED indication
Weight		132g(60A-150A);240g(200A-300A);500g(360A、400A)
※Model:“□”indicates the load current of the solid state relay.
